DESCRIPTION

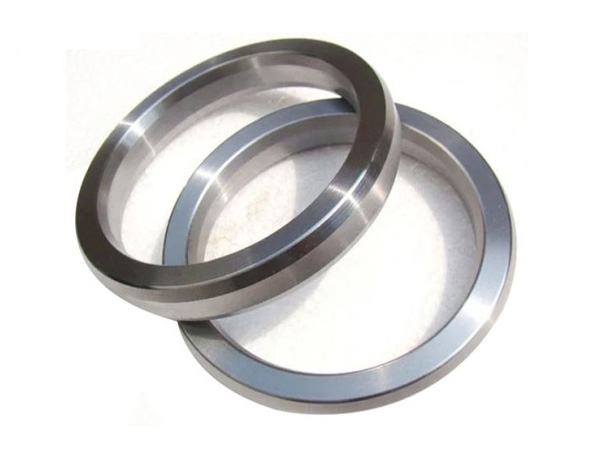

Titanium forged ring also be called titanium cyclinders，it is made by forging. Titanium ring has thick wall thickness, height is less than it’s diameter.  Titanium forged rings can be used in petro, deep sea, or chemical pressure euqipments.

Titanium Alloy Forged Rings Types  including titanium seamless rolled rings, forged rings, and casted rings.

The process for seamless rolled forged rings involves cutting a hole out of the forging material and rolling it into a thin ring. The rolled forged rings offer concentrically improved rings with smooth surfaces as compared to plate burn-outs, or butt welded rings.

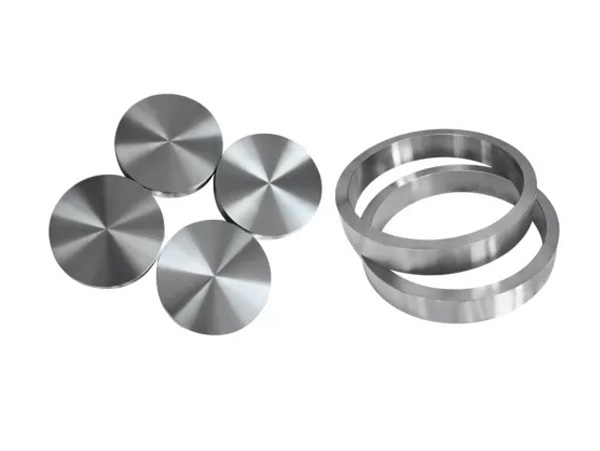

Titanium Disc is usually used to make heat exchanger titanium tubesheet or to be machined into Titanium Flange, etc.

State supplied: Annealed state (M), hot processing state (R) and cold processing state (Y) (annealing and ultrasonic flaw detection)

Packing: Packed in the carton or wooden case

Surface Treatment:Lathing and chamfering

Surface Quality:

The surface roughness (Ra) of two end faces should not be more than 3.2lμm (which is subject to requirements of ultrasonic inspection). The surface roughness (Ra) of external and internal side faces should not be more than 12.5μm (and Ra should not be more than 3.2μm when external circular face accepts ultrasonic flaw detection). The chamfer’s radius is between 5～15mm. The product surface should not have visible flaws, such as cracks, backfins and double skin. Local flaws on the surface is allowed to remove by polishing and grinding. The depth of removal should not be more than corresponding dimensional tolerance, and maximum acceptable dimension should be ensured. The ratio of depth of removal to width of removal should not be more than 1:6 at end faces, and should not be more than 1:10 at external and internal side faces. External side face should be polished and grinded along its axial.

Physical Properties: Better elongation and strength. No deformation after cold bending. No cracks after flattening and flaring. Wires with the diameter of over 3mm have no discontinuity, pores, laminations, cracks, and metal or non-metal impurities.

Surface Cleanliness:

We adopt automatic cleaning machine and rotary brush to clean the surface and then rinse the surface under high pressure. Products are clean and dust free, and have longer acid-resistant service life.

Test: test on mechanical properties, test on chemical ingredients, and ultrasonic detection.

Titanium and Titanium Alloys Products Suppliers

Entorust Titanium is a leading manufacturer of high quality custom forged production for all industries. Our custom forged exhibit high strength, ductility and ease of machining. If you are interested in our products, we are flexible with the customization of orders to suit your specific need.
